DTEC Boiler Parts Industrial Burner Gas Diesel Heavy Waste Oil Burner
Dongturbo Electric Company Ltd is one of the leading manufacturers and suppliers of dtec boiler parts industrial burner gas diesel heavy waste oil burner in China. We warmly welcome you to buy high quality customized products at competitive price from our factory. Contact us for more cheap products.
Development and manufacture of burners with thermal power from 4 to 60 MW with a wide control range.

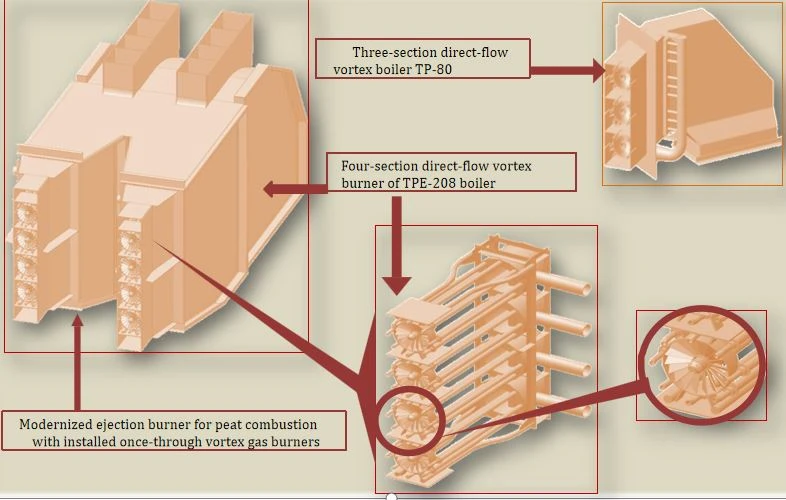

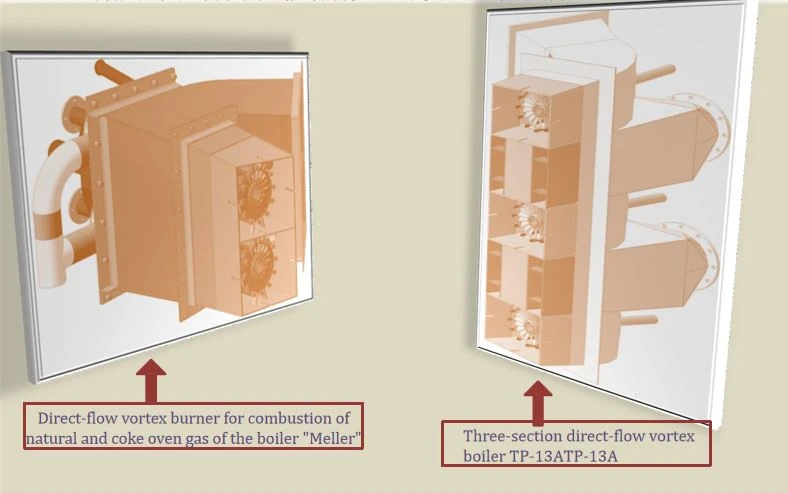

Design and manufacture of burners of various thermal power
Design and manufacture of burners
Conversion of energy facilities to combustion of various types of liquid and gaseous fuels
Technical Parameters
Indicator name | Indicator value | ||||||||||||

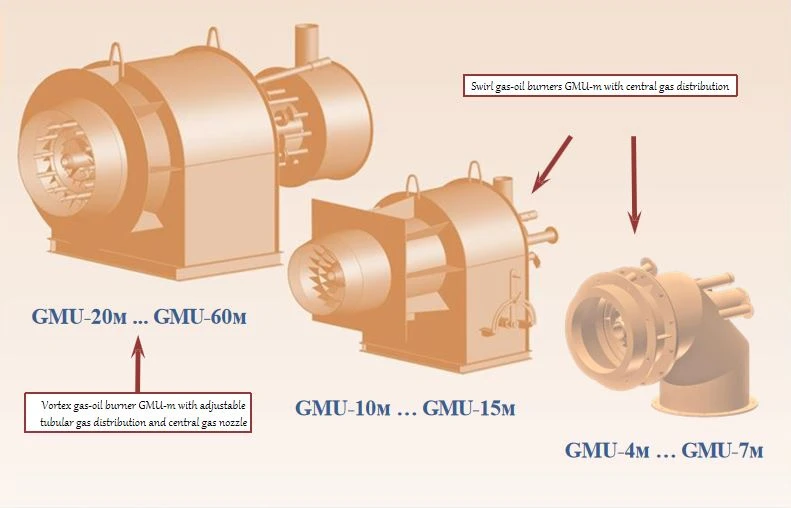

GMU-4м | GMU- 5м | GMU- 7м | GMU-10м | GMU-12,5м | GMU-15м | GMU-17,5м | GMU-20м | GMU-30м | GMU-40м | GMU-45м | GMU-52м | GMU-60м | |
Rated thermal power, MW | 4,0 | 5,0 | 7,0 | 10,0 | 12,5 | 15,0 | 17,5 | 20,0 | 30,0 | 40,0 | 45,0 | 52,0 | 60,0 |
Nominal gas pressure before the burner, kPa | 20,0 … 40,0(depending on the parameters of the gas supply network) | ||||||||||||
Nominal fuel oil pressure in front of the burner, MPa | 3,5±0,07 | ||||||||||||
Atomizing steam pressure in front of the burner, MPa | 0,4 ¸ 0,6 | ||||||||||||
Specific steam consumption for fuel atomization, kg / kg, not more | 0,03 | ||||||||||||
Kinematic viscosity of fuel oil in front of the burner, m2 / s, no more | 16,0·10-6 | ||||||||||||
Nominal gas consumption, nm3 / h |
422,2 |
527,8 |
739,0 |
1055,7 |
1320,0 |
1583,6 |
1847,5 |
2111,4 |
3167,2 |
4222,9 |
4750,7 |
5489,7 |
6334,3 |
Rated fuel oil consumption, kg / h | 360,9 | 451,1 | 631,5 | 902,2 | 1129,0 | 1353,4 | 1579,0 | 1804,5 | 2706,7 | 3609,0 | 4060,5 | 4692,1 | 5413,8 |
Air temperature in front of the burner, оС | 20…300 | ||||||||||||
Loss of total air pressure in the burner, kPa, no more |
2,0 | ||||||||||||
Burner weight, kg, no more | 145 | 175 | 250 | 311 | 405 | 465 | 530 | 580 | 926 | 1227 | 2110 | 2438 | 2813 |
Fuel | Natural gas GOST 5542-2014 Qрн = 34.10 MJ / Nm3 Fuel oil GOST 10585-2013 Qрн = 39.90 MJ / kg | ||||||||||||
Indicator name | Indicator value | ||||||||||||
GMU-4м | GMU- 5м | GMU- 7м | GMU-10м | GMU-12,5м | GMU-15м | GMU-17,5м | GMU-20м | GMU-30м | GMU-40м | GMU-45м | GMU-52м | GMU-60м | |
Rated thermal power, MW | 4,0 | 5,0 | 7,0 | 10,0 | 12,5 | 15,0 | 17,5 | 20,0 | 30,0 | 40,0 | 45,0 | 52,0 | 60,0 |
Nominal gas pressure before the burner, kPa | 20,0 … 40,0(depending on the parameters of the gas supply network) | ||||||||||||
Nominal fuel oil pressure in front of the burner, MPa | 3,5±0,07 | ||||||||||||
Atomizing steam pressure in front of the burner, MPa | 0,4 ¸ 0,6 | ||||||||||||
Specific steam consumption for fuel atomization, kg / kg, not more | 0,03 | ||||||||||||
Kinematic viscosity of fuel oil in front of the burner, m2 / s, no more | 16,0·10-6 | ||||||||||||
Nominal gas consumption, nm3 / h |
422,2 |
527,8 |
739,0 |
1055,7 |
1320,0 |
1583,6 |
1847,5 |
2111,4 |
3167,2 |
4222,9 |
4750,7 |
5489,7 |
6334,3 |
Rated fuel oil consumption, kg / h | 360,9 | 451,1 | 631,5 | 902,2 | 1129,0 | 1353,4 | 1579,0 | 1804,5 | 2706,7 | 3609,0 | 4060,5 | 4692,1 | 5413,8 |
Air temperature in front of the burner, оС | 20…300 | ||||||||||||
Loss of total air pressure in the burner, kPa, no more |
2,0 | ||||||||||||
Burner weight, kg, no more | 145 | 175 | 250 | 311 | 405 | 465 | 530 | 580 | 926 | 1227 | 2110 | 2438 | 2813 |
Fuel | Natural gas GOST 5542-2014 Qрн = 34.10 MJ / Nm3 Fuel oil GOST 10585-2013 Qрн = 39.90 MJ / kg | ||||||||||||
