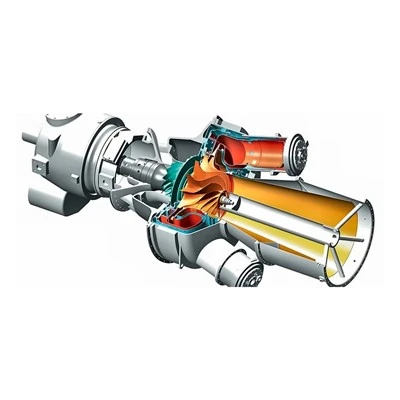

OPRA Turbines OP16 Containerized Gas Turbine Generator Set

OPRA Turbines OP16 series is a 2 MW-class single-shaft industrial gas turbine supplied as a fully integrated 20-foot containerized package. This listing offers 20 identical sets acquired in 2017 and 2018. All units have remained unused in indoor storage with zero operating hours, in original...

Send Inquiry

Chat Now

Product Introduction

Dongturbo Electric Company Ltd is one of the leading manufacturers and suppliers of opra turbines op16 containerized gas turbine generator set in China. We warmly welcome you to buy high quality customized products at competitive price from our factory. Contact us for more cheap products.

20 Units Ready to Ship - Rare batch of identical OPRA OP16 sets available now - no 12–18 month OEM lead time.

Zero Operating Hours - Purchased 2017–2018, never commissioned, stored indoors in ex-factory condition.

Dual Combustor Versions - Both OP16-3A diffusion and OP16-3B DLE low-NOx combustor versions in stock.

100% Air-Cooled - No cooling water, no cooling tower - suited to remote and offshore sites.

CHP Efficiency Above 90% - 573 °C exhaust at 8.9 kg/s for steam or hot water recovery.

Parameter	Value
Model	OPRA Turbines OP16 Series (OP16-3A / OP16-3B)
Rated Power (ISO)	1,850 – 1,876 kWe (approx. 1.86 MW)
Electrical Efficiency	25.1% (LHV)
CHP Overall Efficiency	> 90% with exhaust heat recovery
Generator	10.5 kV, 50 Hz, 2,312 kVA @ 15 °C, 3-phase, 4-pole, Class F, air-cooled
Optional Voltage / Frequency	0.4 – 13.8 kV / 50 Hz and 60 Hz
Pressure Ratio	6.7 : 1
Exhaust Gas	573 °C at 8.9 kg/s
Rotor Speed	26,000 rpm (two-stage planetary gearbox to 1,500 rpm)
Noise Level	< 85 dB(A) at 1 metre
Overhaul Interval (TBO)	Approx. 42,500 hours
Package	20ft containerized skid, approx. 28 t, 100% air-cooled
Control System	Siemens control and information platform (UCP + MCC)
Fuel Range	Natural gas, wellhead gas, flare gas, LPG, diesel, biogas, hydrogen-rich gas
Multi-Unit Scaling	Parallel up to 10 – 12 MW+
Condition	Unused surplus stock, zero operating hours (acquired 2017 and 2018)

Each set is supplied complete with the following factory-integrated systems:

OP16 gas turbine engine with overload-protected planetary gearbox

Gas fuel system with stainless steel piping, transmitters, strainers and nozzles

10.5 kV synchronous generator, 2,312 kVA, Class F, integrated exciter

Heavy-duty base skid with integrated lube oil reservoir

Flexible output coupling with steel safety guard

Lubrication oil system with air-cooled radiator and auxiliary pump

Hydraulic starting system with variable piston pump

Fuel control valve train with emergency shut-off and vent valves

High-energy electronic ignition system

Air intake bird and debris screen

Vibration, speed, pressure and temperature monitoring instrumentation

Unit control panel (UCP) and MCC cabinet

20ft soundproof, weatherproof enclosure (< 85 dB(A) at 1 m)

Combustion air filtration, ventilation and silencing system

Combustible gas detection interlocked with emergency shutdown

Oil and gas - wellhead power, offshore platforms, flare gas recovery

Industrial CHP - chemical, paper, textile and food processing plants

Data centres - prime and standby power with fast load acceptance

Remote mines and isolated microgrids without grid connection

Waste-to-energy - biogas, landfill gas and industrial off-gas projects

Quantity available: 20 complete sets.

Minimum order quantity: 10 units.

Warranty: original manufacturer warranty has expired; sold as-is.

Documentation: certificates of conformity, test records, O&M manuals and electrical schematics.

Inspection: on-site inspection arranged after contract signing and deposit payment.

Delivery: clear title, no auction process, prompt dispatch.

For pricing, technical documentation or to arrange an inspection, send your requirement - including quantity, combustor preference and project location - through the enquiry form below.
