1000W Balcony Solar Panel Energy System Kit





Title

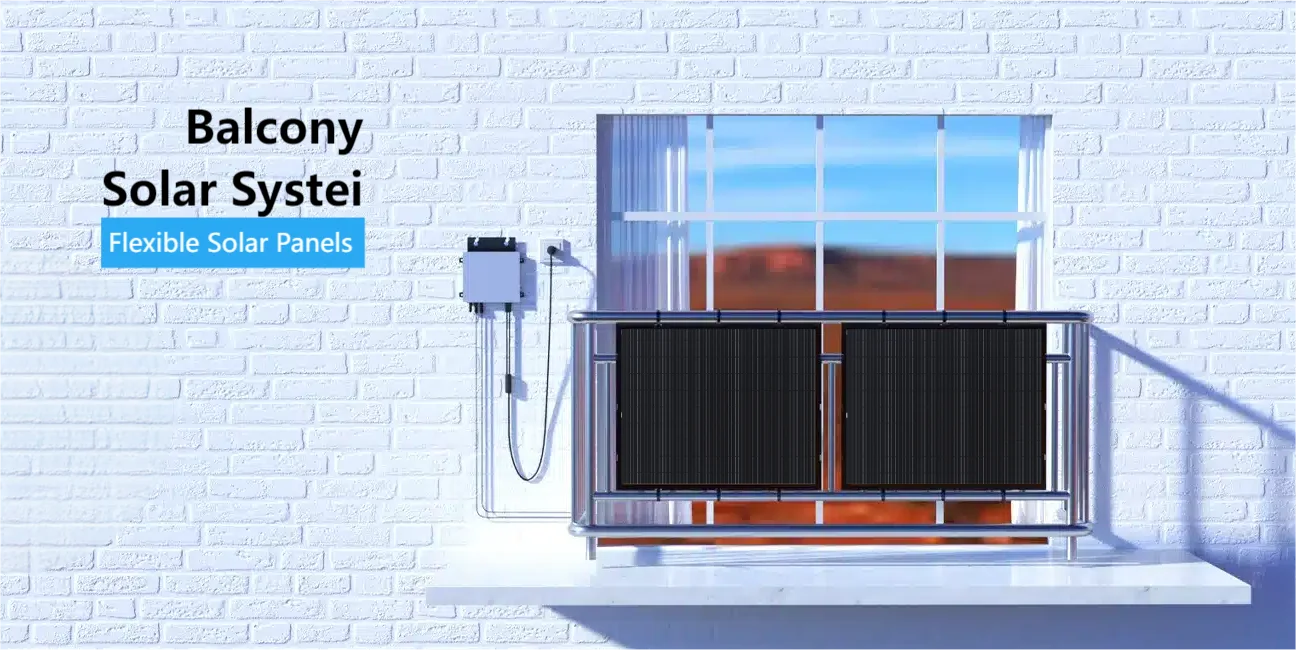

Unlock Urban Solar Potential: The Revolutionary 210W Flexible Solar Panel for Balcony Energy Independence

In an era where urban spaces demand innovative energy solutions, the 210W flexible solar panel emerges as a game-changer for balcony-based solar systems. Combining cutting-edge technology with user-centric design, this ultra-thin, lightweight solution empowers city dwellers to harness renewable energy effortlessly-without compromising aesthetics or functionality.

Why Choose 210W Flexible Solar Panels?

Unmatched Adaptability

Surface Compatibility: Bendable up to 30°, these panels conform seamlessly to curved balcony railings, glass surfaces, or even pergolas-eliminating the "flat roof only" limitation of traditional rigid panels.

Weight Advantage: At just 2.3 kg/m² (vs. 15 kg/m² for glass modules), they impose minimal structural load, making them ideal for high-rise apartments and historic buildings with weight restrictions.

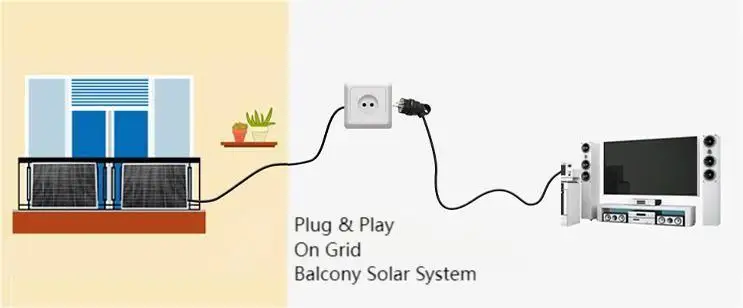

Plug-and-Play Simplicity

No Permits, No Hassle: Most systems under 800W qualify as "plug-in devices" in regions like the EU, bypassing complex grid-connection approvals.

DIY Installation: Secure panels in 90 minutes using adhesive strips or non-penetrating clamps-no drilling, no specialized tools.

High Efficiency, All-Weather Reliability

22.5% Cell Efficiency: Monocrystalline PERC cells with anti-reflective coating ensure optimal performance even in low-light conditions (e.g., 85% output on cloudy days).

Extreme Durability: IP68-rated encapsulation resists hail (up to 25mm diameter), salt spray, and temperatures from -40°C to +85°C-proven in Berlin winters and Dubai summers.

Aesthetic Integration

Sleek, Low-Profile Design: 2.5mm thickness and matte-black finish blend invisibly with modern architecture.

Zero Glare: Anti-glare coating prevents light pollution, complying with strict HOA regulations in condominiums.

Cost-Effective Sustainability

ROI in 3–4 Years: Generate 0.8–1.2 kWh daily (region-dependent), slashing electricity bills by 25–35% annually.

Carbon Neutrality: Offset 320 kg of CO₂ emissions yearly-equivalent to planting 15 trees.

Technical Edge Over Traditional Panels

Real-World Applications

Rental-Friendly Energy: Tenants can install/remove panels without landlord approval-ideal for transient urban populations.

Emergency Readiness: Pair with a 1kWh LiFePO4 battery (sold separately) for 8+ hours of backup power during outages.

Smart Home Synergy: Integrate with Tesla Powerwall or Huawei Luna 2000 via hybrid inverters for 24/7 energy optimization.

Certifications & Safety

Global Compliance: IEC 61215 (safety), IEC 61730 (fire resistance), and RoHS-certified lead-free materials.

Warranty: 12-year product warranty + 25-year linear power output guarantee (≥80% efficiency at EOL).

The Future of Urban Solar Starts on Your Balcony

The 210W flexible solar panel isn't just a product-it's a movement toward democratized clean energy. By overcoming space, weight, and regulatory barriers, it transforms underutilized balconies into personal power plants.

Act Now: Join 50,000+ eco-smart households across 30 countries who've reduced their carbon footprint while enjoying energy bill freedom.

Learn More: Visit [YourBrand.com] for installation guides, ROI calculators, and real-user testimonials.



 Connection method of micro inverter

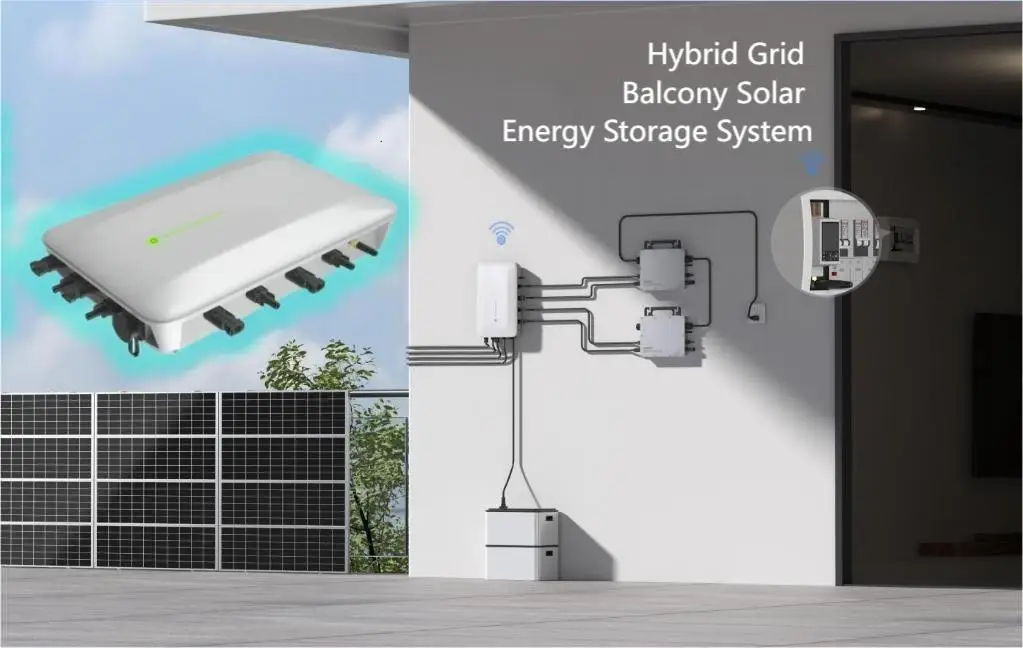

Balcony solar system with battery：Balcony solar system with batteries for off-grid operation or outdoor camping power supply, flexible use scenarios.



Product Parameter

Input | DC DTM400P DTM600P DTM800P Recommended PV Module Power Range /W 200X2 200 x 3 200 x 4 MPPT Voltage Range /V 22-55 22-55 22-55 Startup Voltage /V 24 24 24 Max. Input Voltage /V 60 60 60 Max. Input Current /A 14 14 14 Overvoltage Protection Category II II II Output | AC Peak Output Power /VA 400 600 800 Max. Continous Output Power /VA 450 650 850 Max. Continous Output Power /VA 230 230 230 Nominal Output Voltage Range /V Configurable Configurable Configurable Max. Continous Output Current /A 1.3 2.52 3.26 Nominal Frequency / Range /Hz 50 / Configurable 50 / Configurable 50 / Configurable Power Factor (Nominal/Adjustable Range) 1.0/0.8 leading…0.8 lagging 1.0/0.8 leading…0.8 lagging 1.0/0.8 leading…0.8 lagging AC Short Circuit Fault Current Over 3 cycles /Arms 2.2 4.4 8.2 THDi@Rated Power <3% <3% <3% Max. Units per 20A Branch 12 6 5 Overvoltage Protection Category III III III General Data Operating Ambient Temperature Range/℃ -40~65 -40~65 -40~65 Relative Humidity Range 0-100% 0-100% 0-100% Dimensions (W x H x D) /mm 180 x 186 x 25 227 x 132 x 50 268 x 250 x 42 Weight /kg 1.5 2.9 2.9 DC Connector Type MC4 MC4 MC4 AC Connection Type (inverter-inverter) Daisy Chain AC Bus Daisy Chain AC Bus Trunk Cable Communication Method PLC or WiFi PLC or WiFi PLC or WiFi Efficiency Peak Efficiency 97.1% 97.1% 97.3% MPPT Efficiency >99.5% >99.5% >99.5% Night Power Consumption /mW 80 110 110



Project Case



Research and development

laboratory







Scene 01

Scene 02

Scene 03

Scene 04



Energy storage production base

Shanghai 1GWh Residential ESS PACK production line.

Shanghai The 3GWh Commercial ESS PACK production line

ongkang 5GWh digital energy storage industrial base (under construction)







CertificationsCreate a comprehensive solution for efficient human theft mana

Certifications

Company and Product Qualifications





ISO

ISO

CE

CE

CE

CE









Global Layout

Overseas Operation and Maintenance Service Center



Europe： Warehouses and services in the Netherlands, The United Kingdom and Italy

Branches： Netherlands · Germany · The United Kingdom · Czech Republic · Spain ·South Africa · Australia



One-Stop ESS Microgrid Solution In China

Microgrids can operate independently in the event of a main grid failure, ensuring the uninterrupted power supply of key facilities and services, and enhancing the disaster resistance and reliability of the power system.

Send Inquiry Now
