Balcony Solar System With LiFePo4 Battery

Empower Your Balcony: The All-in-One Solar + Battery System for Unstoppable Energy Freedom

Tired of rising electricity bills and unpredictable blackouts? Meet the future of urban energy independence: Balcony Solar Systems with Integrated Battery Storage. This compact, plug-and-play solution transforms your balcony into a 24/7 clean power hub-combining solar generation, smart storage, and grid resilience into one sleek package. Here's why it's the ultimate upgrade for modern living:

1. 24/7 Energy Independence, Rain or Shine

Problem: Traditional balcony solar systems waste surplus energy when the sun sets.
Solution: Our integrated LiFePO4 battery (2–5kWh options) stores excess daytime solar power for use at night or during outages.

Blackout Protection: Keep lights, Wi-Fi, and refrigerators running for 6–12+ hours during grid failures.

Smart Energy Management: AI-driven software prioritizes battery usage during peak tariff hours (e.g., 5–9 PM), slashing bills by up to 70%.

Weatherproof Reliability: Batteries operate flawlessly from -20°C to 50°C, backed by a 10-year warranty.

2. Maximize Savings with Zero Upfront Hassle

Problem: Home battery systems often require costly electrical upgrades.
Solution: Our balcony kits include everything-no permits, no electrician fees.

Plug-and-Play Design: Connect to a standard outlet (Schuko/EU or NEMA/US) in under 2 hours.

ROI in 2–4 Years: A 600W solar + 3kWh battery system generates 2,000+ kWh/year-enough to power a 2-bedroom apartment's essentials.

Scalable: Start with a 300W solar + 1kWh battery ($1,499) and expand as needs grow.

3. Designed for Urban Life

Problem: Renters and condo dwellers face strict installation rules.
Solution: Portable, non-invasive, and architecturally discreet.

Renter-Friendly: Take your system when you move-no drilling or permanent changes.

Space-Saving: Ultra-thin 210W flexible panels (2.5mm thick) attach to railings, windows, or walls.

Aesthetic Appeal: Matte-black panels and minimalist battery enclosures blend into modern décor.

4. Eco-Smart Technology

Problem: Most energy storage relies on polluting lead-acid batteries.
Solution: Sustainable innovation at every level.

100% Green: LiFePO4 batteries use non-toxic, recyclable materials with 6,000+ life cycles.

Carbon Neutral: A single 3kWh system offsets 1.2 tons of CO₂ annually-like planting 60 trees.

Grid Relief: Reduce strain on local utilities during peak demand, easing fossil fuel dependency.

5. Smart Home Integration

Problem: Legacy systems lack connectivity.
Solution: A brain, not just a battery.

Real-Time Monitoring: Track energy flow, savings, and battery health via a smartphone app.

Voice Control: Sync with Alexa/Google Home for commands like "Alexa, switch to battery mode."

EV-Ready: Future-proof your system to charge e-bikes, scooters, or even EVs (with expanded capacity).

Technical Superiority

Who Needs This?

Urbanites: Turn cramped balconies into power stations in cities like NYC, Berlin, or Tokyo.

Remote Workers: Ensure laptops and routers never lose power during outages.

Eco-Conscious Families: Teach kids about sustainability while cutting bills.

Disaster-Prone Areas: Stay safe during hurricanes, wildfires, or rolling blackouts.

Certified Safe & Future-Ready

Global Standards: UL 9540 (US), CE (EU), and IEC 62619 (battery safety) certified.

Upgradable: Swap in larger batteries or add panels as technology evolves.

Join the Energy Revolution

Why wait for governments or utilities? With balcony solar + storage, you control your energy destiny-today.

Limited-Time Offer:

Free shipping + 5-year theft/damage coverage.

Refer a friend: Earn $100 credit for every successful referral.

Act Now: Visit [YourWebsite.com] to design your system, explore financing, or chat with our solar experts.

Why Settle for Solar When You Can Have Solar + Storage?
Harness the sun, defy the grid, and own your power-all from the balcony you already love.

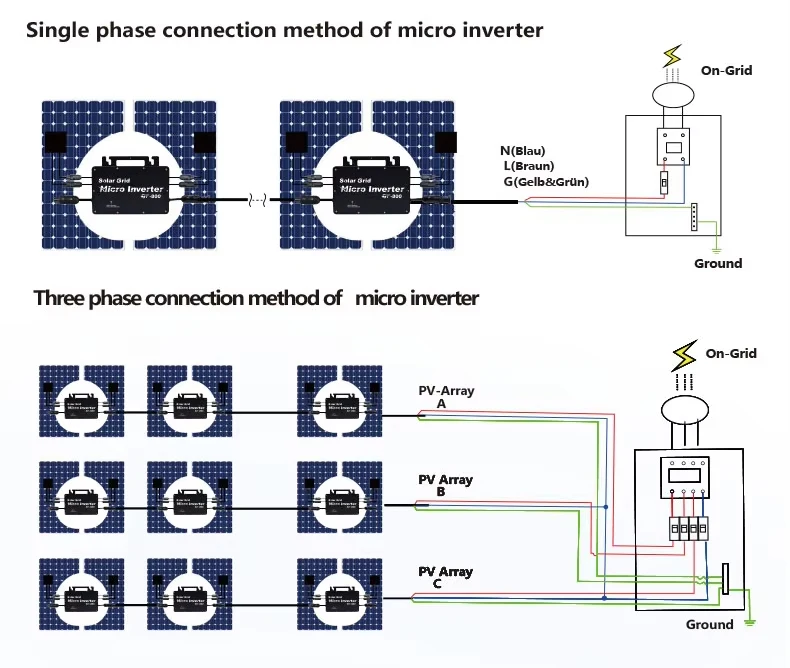

 Connection method of micro inverter





Product Parameter

Input | DC DTM400P DTM600P DTM800P Recommended PV Module Power Range /W 200X2 200 x 3 200 x 4 MPPT Voltage Range /V 22-55 22-55 22-55 Startup Voltage /V 24 24 24 Max. Input Voltage /V 60 60 60 Max. Input Current /A 14 14 14 Overvoltage Protection Category II II II Output | AC Peak Output Power /VA 400 600 800 Max. Continous Output Power /VA 450 650 850 Max. Continous Output Power /VA 230 230 230 Nominal Output Voltage Range /V Configurable Configurable Configurable Max. Continous Output Current /A 1.3 2.52 3.26 Nominal Frequency / Range /Hz 50 / Configurable 50 / Configurable 50 / Configurable Power Factor (Nominal/Adjustable Range) 1.0/0.8 leading…0.8 lagging 1.0/0.8 leading…0.8 lagging 1.0/0.8 leading…0.8 lagging AC Short Circuit Fault Current Over 3 cycles /Arms 2.2 4.4 8.2 THDi@Rated Power <3% <3% <3% Max. Units per 20A Branch 12 6 5 Overvoltage Protection Category III III III General Data Operating Ambient Temperature Range/℃ -40~65 -40~65 -40~65 Relative Humidity Range 0-100% 0-100% 0-100% Dimensions (W x H x D) /mm 180 x 186 x 25 227 x 132 x 50 268 x 250 x 42 Weight /kg 1.5 2.9 2.9 DC Connector Type MC4 MC4 MC4 AC Connection Type (inverter-inverter) Daisy Chain AC Bus Daisy Chain AC Bus Trunk Cable Communication Method PLC or WiFi PLC or WiFi PLC or WiFi Efficiency Peak Efficiency 97.1% 97.1% 97.3% MPPT Efficiency >99.5% >99.5% >99.5% Night Power Consumption /mW 80 110 110

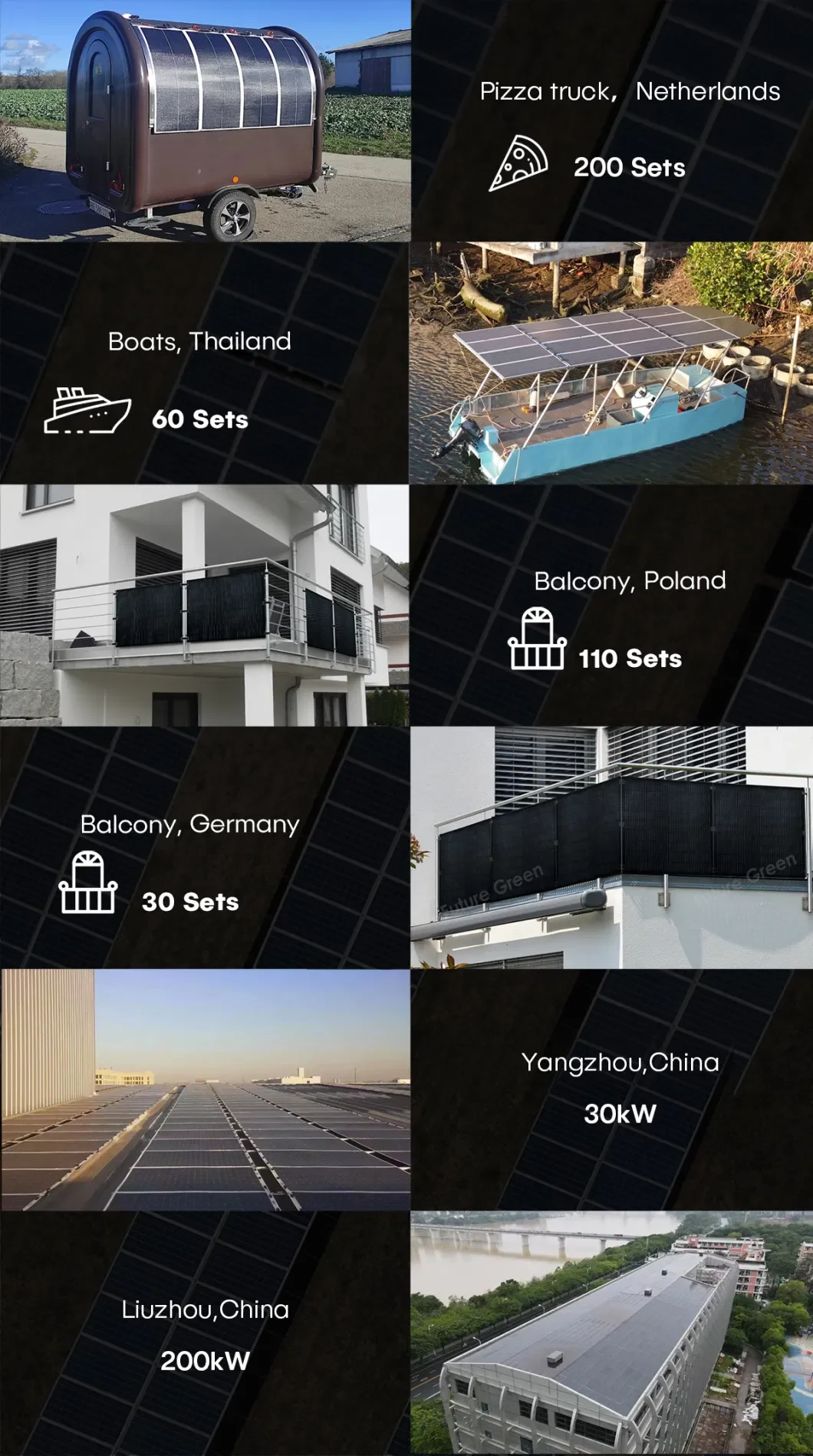

Project Case



Research and development

laboratory







Scene 01

Scene 02

Scene 03

Scene 04



Energy storage production base

Shanghai 1GWh Residential ESS PACK production line.

Shanghai The 3GWh Commercial ESS PACK production line

ongkang 5GWh digital energy storage industrial base (under construction)







CertificationsCreate a comprehensive solution for efficient human theft mana

Certifications

Company and Product Qualifications





ISO

ISO

CE

CE

CE

CE









Global Layout

Overseas Operation and Maintenance Service Center



Europe： Warehouses and services in the Netherlands, The United Kingdom and Italy

Branches： Netherlands · Germany · The United Kingdom · Czech Republic · Spain ·South Africa · Australia



One-Stop ESS Microgrid Solution In China

Microgrids can operate independently in the event of a main grid failure, ensuring the uninterrupted power supply of key facilities and services, and enhancing the disaster resistance and reliability of the power system.

Send Inquiry Now
