As a supplier for coal fired power plants, I've had the privilege of witnessing firsthand the intricate dance of elements that goes into ensuring the stability of the combustion process. A coal fired power plant is a complex system where the combustion process stands at the heart, driving the entire operation. In this blog, I'll delve into the various aspects that contribute to the stability of this crucial process.
Understanding the Basics of Combustion in Coal Fired Power Plants
Combustion in a coal fired power plant is essentially a chemical reaction between coal, a fossil fuel rich in carbon and hydrogen, and oxygen. When coal is burned in the presence of oxygen, it releases a large amount of heat energy. This heat is then used to produce steam, which drives a turbine connected to a generator, ultimately producing electricity.
The stability of this combustion process is vital for several reasons. Firstly, stable combustion ensures the efficient conversion of coal into heat energy. When the combustion is not stable, it can lead to incomplete combustion, which means that some of the coal is not fully burned, resulting in wastage of fuel and reduced efficiency. Secondly, stable combustion helps in maintaining a consistent steam output, which is essential for the smooth operation of the steam turbine. Fluctuations in steam production can cause problems for the turbine and other downstream equipment, leading to reduced power generation and potential damage to the machinery.
Fuel Quality and Preparation
One of the fundamental factors influencing the stability of the combustion process is the quality of the coal used. Different types of coal have varying properties, such as calorific value, moisture content, ash content, and volatile matter content. These properties can significantly impact the combustion behavior of the coal.
Calorific value, also known as heating value, is a measure of the amount of heat energy released when a unit mass of coal is burned. Coals with higher calorific values provide more heat energy per unit mass, which can enhance the efficiency of the combustion process. However, high - calorific - value coals may also have higher ash and sulfur content, which can cause problems such as fouling and corrosion in the boiler.
Moisture content in coal can have a negative effect on the combustion process. Excessive moisture requires more energy to evaporate, which reduces the overall heat available for steam generation. It can also cause problems such as incomplete combustion and ignition difficulties. Therefore, it is important to control the moisture content of the coal through proper storage and pre - treatment.
Ash content is another critical parameter. Ash is the inorganic residue left after the coal is burned. High ash content can cause problems such as slagging, which is the formation of a hard, molten layer on the boiler walls. Slagging can reduce heat transfer efficiency and may even lead to blockages in the boiler passages. To mitigate these issues, power plants often use coal with an appropriate ash content and employ techniques to remove ash from the flue gases.
Volatile matter content in coal affects the ignition and combustion characteristics. Coals with higher volatile matter content ignite more easily and burn faster. However, if the balance is not right, it can lead to rapid and unstable combustion. Power plants need to select coal with a suitable volatile matter content based on the design of their boilers and combustion systems.
In addition to coal quality, proper fuel preparation is also crucial. Coal is typically crushed and pulverized into fine particles before being fed into the boiler. Fine coal particles have a larger surface area, which allows for better contact with oxygen and more efficient combustion. The pulverization process needs to be carefully controlled to ensure a consistent particle size distribution. If the particle size is too large, the coal may not burn completely, while if it is too small, it can cause problems such as electrostatic precipitation difficulties and increased dust emissions.
Air Supply and Distribution
The supply of air is another essential factor in ensuring stable combustion. Air provides the oxygen necessary for the combustion reaction. The amount of air supplied needs to be carefully regulated to match the amount of coal being burned. This is typically achieved through the use of air fans and control systems.
The ratio of air to fuel, known as the air - fuel ratio, is a critical parameter. A stoichiometric air - fuel ratio is the ideal ratio at which all the fuel is completely burned with the minimum amount of air. However, in practice, power plants usually operate with an excess air ratio to ensure complete combustion. The excess air helps to compensate for variations in coal quality and combustion conditions.
The distribution of air within the boiler is also important. Uniform air distribution ensures that all parts of the coal bed or coal suspension are well - oxygenated, promoting stable and efficient combustion. Power plants use various techniques to achieve uniform air distribution, such as the use of air dampers, nozzles, and air registers. These devices can be adjusted to control the flow rate and direction of the air, ensuring that it reaches the areas where combustion is taking place.
Combustion Chamber Design
The design of the combustion chamber plays a crucial role in the stability of the combustion process. A well - designed combustion chamber should provide a suitable environment for the ignition, combustion, and burnout of the coal particles.
The shape and size of the combustion chamber can affect the residence time of the coal particles and the mixing of air and fuel. A larger combustion chamber may provide a longer residence time, allowing for more complete combustion. However, it also requires more energy to heat up and maintain the temperature. The shape of the chamber can influence the flow patterns of the air and fuel, which in turn affects the mixing and combustion efficiency.
The arrangement of burners in the combustion chamber is also important. Burners are responsible for injecting the coal and air into the chamber and initiating the combustion process. The number, type, and location of burners can impact the stability and efficiency of combustion. For example, some power plants use multiple burners arranged in a specific pattern to ensure uniform fuel distribution and better mixing with air.
Control Systems
Modern coal fired power plants rely on advanced control systems to monitor and regulate the combustion process. These control systems use sensors to measure various parameters such as temperature, pressure, flow rate, and oxygen content in the boiler and flue gases.
Based on the data collected by these sensors, the control systems can adjust the settings of various components, such as the fuel feed rate, air supply, and burner operation, to maintain stable combustion. For example, if the oxygen content in the flue gases is too low, indicating incomplete combustion, the control system can increase the air supply to ensure that more oxygen is available for the combustion reaction.
Automated control systems can also respond quickly to changes in operating conditions, such as variations in coal quality or load demand. This helps to maintain the stability of the combustion process and ensure the efficient operation of the power plant.
Our Offering for a Stable Combustion Process
As a supplier, we understand the importance of all these factors in ensuring the stability of the combustion process in coal fired power plants. We offer a range of high - quality equipment and solutions to support power plants in achieving optimal combustion performance.
One of our key products is the 250KW Micro/Mini Condensing Steam Turbine. This turbine is designed to work efficiently with the steam produced from stable combustion in small - to - medium - sized coal fired power plants. It is engineered to handle variations in steam flow and pressure, ensuring a smooth and reliable operation.
For larger power plants, we provide the 3000KW Back Pressure High Speed Small Steam Turbine. This turbine is suitable for applications where high - speed operation and back - pressure steam utilization are required. It can effectively convert the thermal energy from stable combustion into mechanical energy, which is then used to generate electricity.

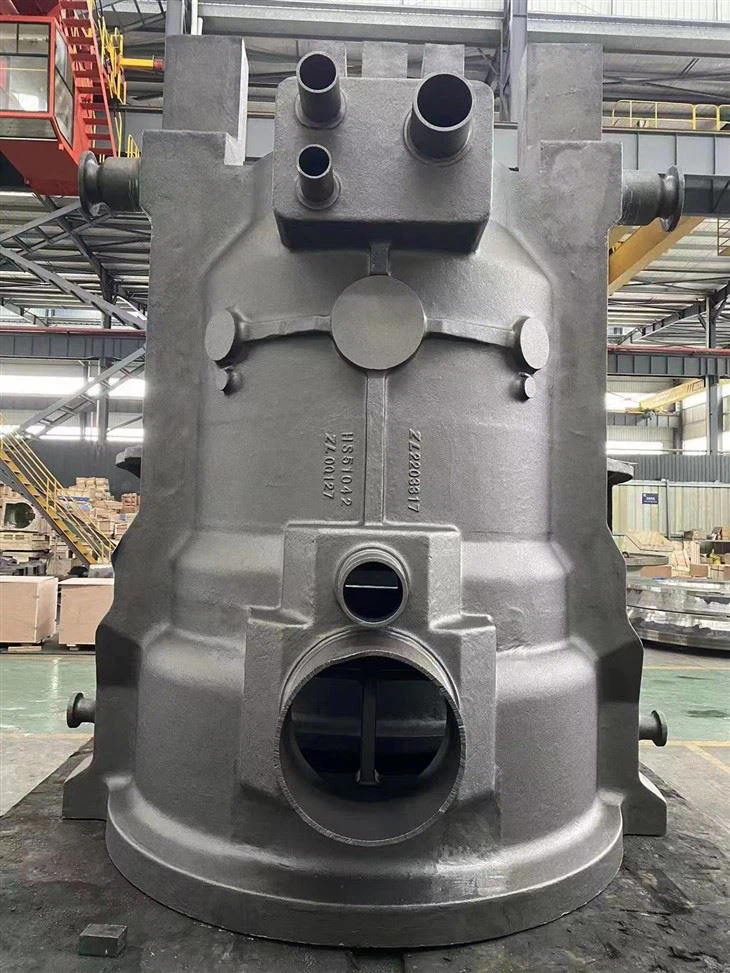

In addition to turbines, we also offer Steam Turbine Cylinder Production services. The steam turbine cylinder is a critical component that houses the turbine blades and other internal parts. Our high - precision manufacturing process ensures that the cylinders are of the highest quality, providing reliable performance and contributing to the overall stability of the power plant.
Conclusion
Ensuring the stability of the combustion process in a coal fired power plant is a complex but essential task. It requires careful consideration of factors such as fuel quality and preparation, air supply and distribution, combustion chamber design, and the use of advanced control systems. As a supplier, we are committed to providing high - quality equipment and solutions to support power plants in achieving optimal combustion stability.
If you are in the market for coal fired power plant equipment or would like to discuss how we can help you improve the stability of your combustion process, we invite you to contact us for a procurement discussion. We look forward to working with you to enhance the efficiency and reliability of your power generation operation.
References
- Sickles, E. A., III. "Fossil fuel power generation." CRC Press, 2019.
- Song, H. J., & Guo, R. Z. "Thermal power plant simulation and control systems." Elsevier, 2018.
