10KW Micro/Mini Condensing Steam Tubrine
Dongturbo Electric Company Ltd is one of the leading manufacturers and suppliers of 10kw micro/mini condensing steam tubrine in China. We warmly welcome you to buy high quality customized products at competitive price from our factory. Contact us for more cheap products.
This product is not currently available for sale.

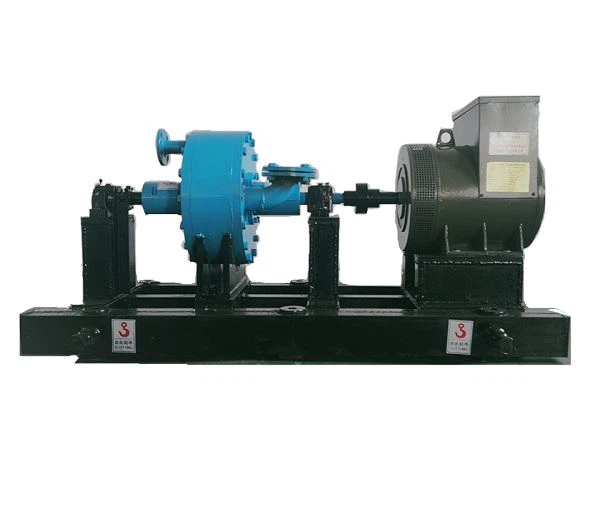

DTEC 10KW Micro/Mini condensing steam turbine units include 10KW condensing steam turbine,10KW generator, plc control box, condenser. The main parameters are as follows:
No. | Description | Paramters | Re-marks |
1 | Model | N0.01-1.7 | |
2 | Rated Power | 10 KW | |
3 | Rated Speed | 3000r/min | |
4 | Generator speed | 3000r/min | |
5 | Inlet pressure | 1.7MPa | Inlet Parameters |
6 | Inlet pressure | saturation temperature
| |
7 | Inlet steam | 0.45t/h | |
8 | Steam consumption | 45.0kg/kw.h | |
9 | exhaust pressure load
| 0.01MPa | |
10 | Condensate Temperature | 46℃ | |
11 | Layout | Single layer | |
12 | Rotor Structure | 1C2 | |
13 | Connection between the turbine and generator | Coupline
| |
14 | Noise db | ≤80 | |
15 | Generator power | 10KW | |
16 | Generator Voltage | 220 V | |
17 | Generator Frequency | 60HZ | |
18 | Generator Speed | 3000r/min |
